MAX LIGHT MODERN

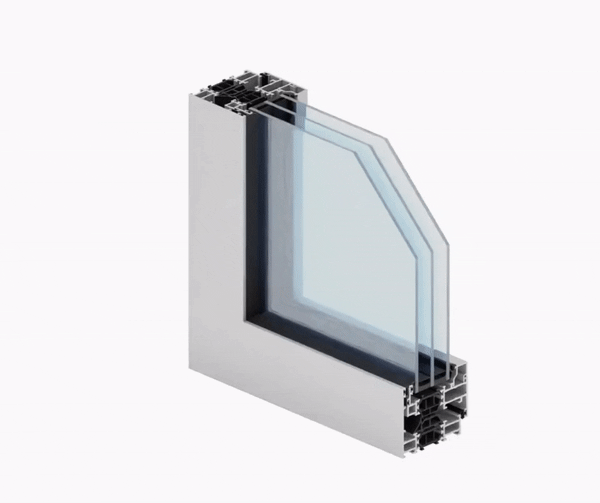

  • A window system with thermal insulation, featuring a smooth and slim profile line

  • The specific shape of the profiles (resembling steel profiles) gives the structure a modern industrial character

  • System application: fixed windows, opening windows: single- or double-sash windows with tilting, opened inwards

  • The system features slim profiles with the minimum visible width and modern design

  •

Technical Specification

Technical Specification Description
Profile Type Max Light Modern
Profile Thickness 74 mm
Glass Thickness 24 - 58 mm
Thermal Insulation (Uf) 1.0 - 1.5 W/m²K
Sound Insulation (Rw) up to 48 dB
Air Permeability Class 4 (EN 12207)
Water Tightness Class E1200 (EN 12208)
Wind Load Resistance Class C5 (EN 12210)
Burglar Resistance RC2
Operating Force Class 1 (EN 13115)
Maximum Sash Weight up to 200 kg
Available Configurations Single, Double, Triple, and Quad Track
Threshold Options Standard and Low Threshold
Color Options Various RAL colors and Woodgrain finishes
Hardware Compatibility Compatible with various hardware systems

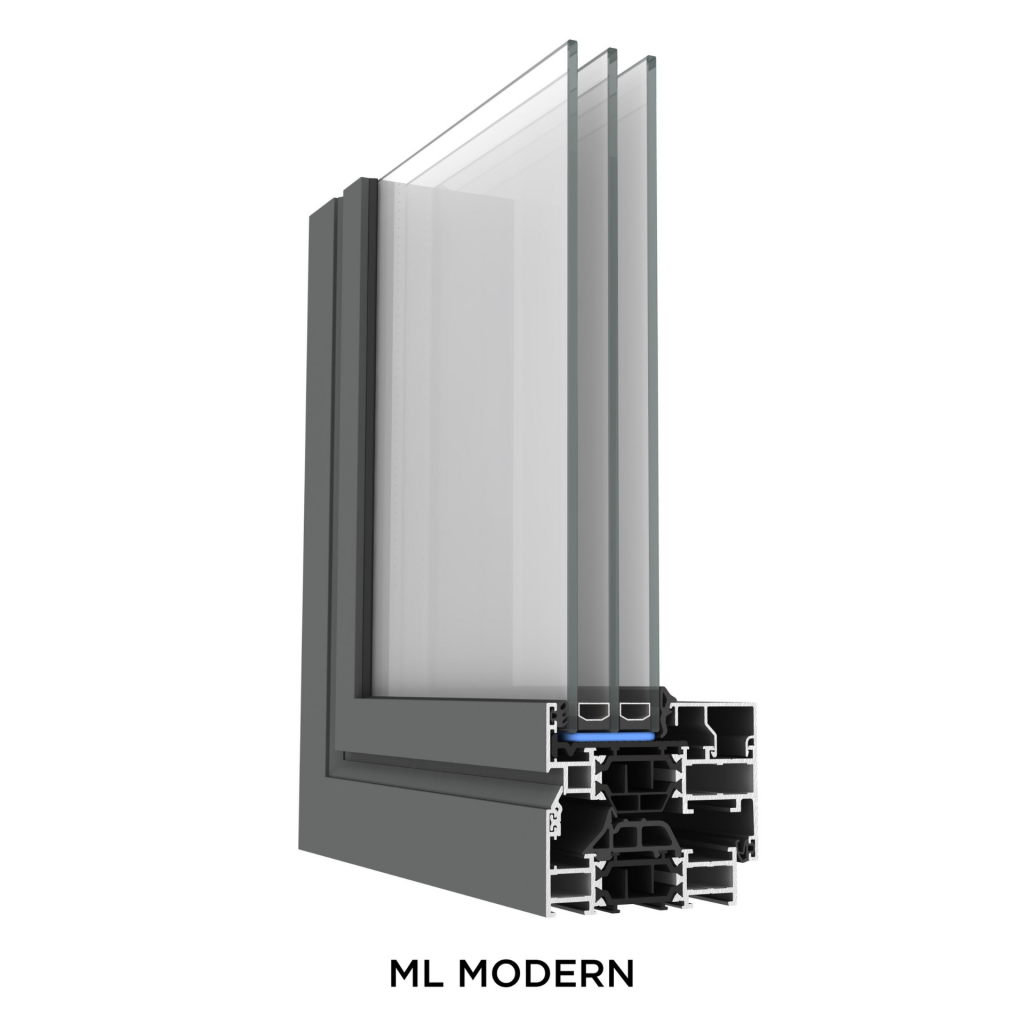

MAX LIGHT MODERN

ATRIBUTE

Max Light Modern is a versatile window and door system offered by Aliplast Poland. This modern and sleek system is designed to meet contemporary architectural and energy efficiency requirements. With its profile thickness of 74 mm, Max Light Modern provides excellent thermal insulation, with Uf values ranging from 1.0 to 1.5 W/m²K.

The system is compatible with a wide range of glass thicknesses, from 24 to 58 mm, allowing for various glazing options. Max Light Modern offers impressive sound insulation, with Rw values of up to 48 dB, ensuring a quiet and comfortable indoor environment.

In terms of performance, Max Light Modern is classified as Class 4 for air permeability (EN 12207), ensuring airtightness and preventing drafts. It also achieves Class E1200 for water tightness (EN 12208), offering high resistance to water ingress. With its Class C5 wind load resistance (EN 12210), the system can withstand harsh weather conditions.

Max Light Modern prioritizes security and is classified as RC2 for burglary resistance. It provides peace of mind with its robust construction and reliable locking mechanisms. Additionally, the system is designed for ease of operation, with Class 1 operating force according to EN 13115.

The Max Light Modern system offers flexibility in design and configuration. It is available in various track options, including single, double, triple, and quad tracks, allowing for multi-panel configurations. The system also offers options for standard and low thresholds, catering to different accessibility needs.

To complement any architectural style or personal preference, Max Light Modern comes in a wide range of color options, including various RAL colors and woodgrain finishes. It is also compatible with different hardware systems, providing customization possibilities for both residential and commercial projects.

Whether for new construction or renovation projects, Max Light Modern offers a combination of style, performance, and energy efficiency, making it an excellent choice for modern living spaces.
